Unity URP高质量渲染开发实践¶

// Primary Lobe
half3 SpecularLobe1 = SkinGGXSpecularLobe(brdfData, normalWS, lightDirectionWS, viewDirectionWS);

// Secondary Lobe
BRDFData brdfData2 = brdfData;
brdfData2.roughness = max(PerceptualRoughnessToRoughness(SkinData.PerceptualRoughness), HALF_MIN_SQRT);
half3 SpecularLobe2 = SkinGGXSpecularLobe(brdfData2, normalWS, lightDirectionWS, viewDirectionWS);

// Dual Lobe Mix
half3 SpecularLobeTerm = lerp(SpecularLobe1, SpecularLobe2, SkinData.LobeWeight);

// Reference: [The Process of Creating Volumetric-based Materials in Uncharted 4]

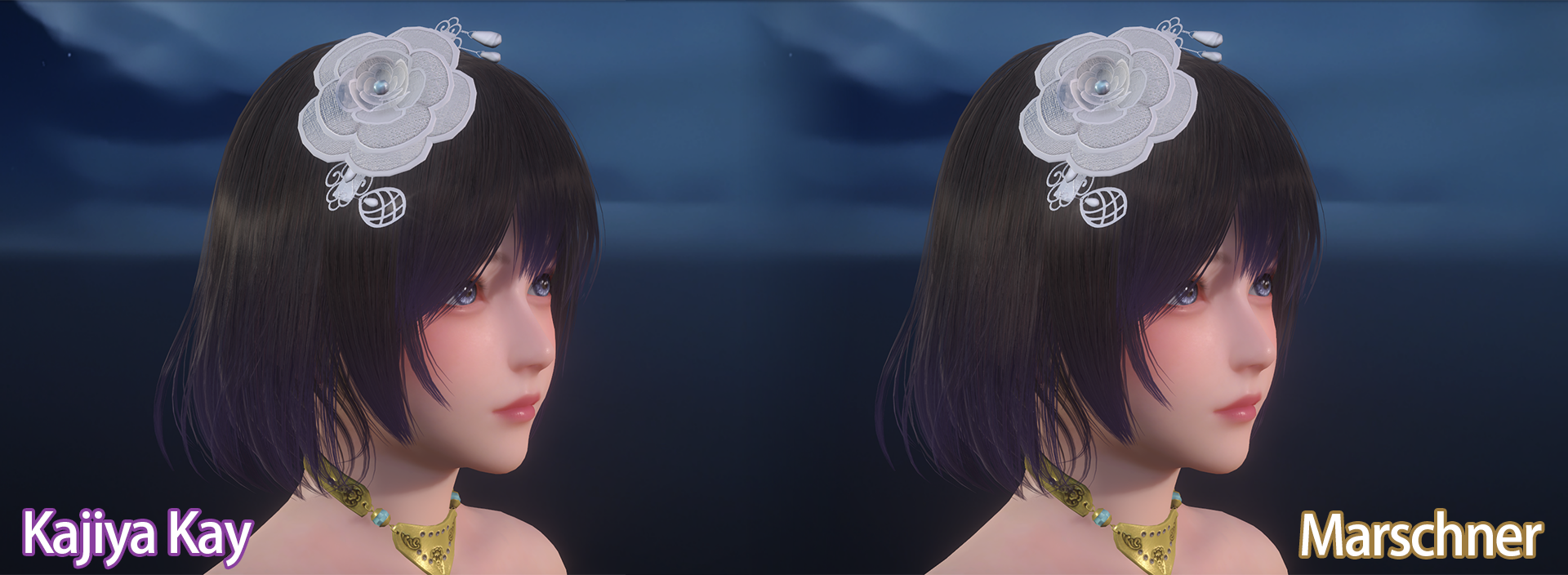

half3 HairVolumetricBacklitScatter(half3 albedo, half3 L, half3 V, half3 N, HairData hairData)
{
    const half ScatterPower = 9;
    const half lightScale = 1;

    half3 NoisedL = normalize(L + hairData.Noise * 0.25);
    half NdotL = dot(N, NoisedL);
    half NdotV = dot(N, V);
    half VdotL = dot(V, NoisedL);
    half CosThetaL = saturate(abs(NdotL));
    half CosThetaV = saturate(abs(NdotV));

    half3 scatterFresnel = pow(1.0 - CosThetaV, ScatterPower);
    half3 scatterLight = pow(saturate(-VdotL), ScatterPower) *
                        (1.0 - CosThetaV) *
                        saturate(1.0 - CosThetaL);

    half3 transAmount = scatterFresnel + lightScale * scatterLight;
    return lerp(1, albedo, 0.8) * hairData.Tint * transAmount * hairData.Backlit;
}

void SheenScattering(BRDFData brdfData, half NoH, half NoV, half NoL, out half SheenTerm)
{
    // @IllusionRP:
    // Since URP does not multiply INV_PI in Lambert Diffuse for artistic design considerations.
    // Specular term need multiply PI to maintain energy conservation.
#ifdef _SHEEN_VELET
    half D_Sheen = D_AshikhminNoPI(NoH, brdfData.roughness2);
#else
    half D_Sheen = D_CharlieNoPI(NoH, brdfData.roughness);
#endif

    half V_Sheen = V_Neubelt(NoL, NoV);
    SheenTerm = D_Sheen * V_Sheen;
#if REAL_IS_HALF
    SheenTerm  = SheenTerm  - HALF_MIN;
    SheenTerm  = clamp(SheenTerm , 0.0, 100.0); // Prevent FP16 overflow on mobiles
#endif
}

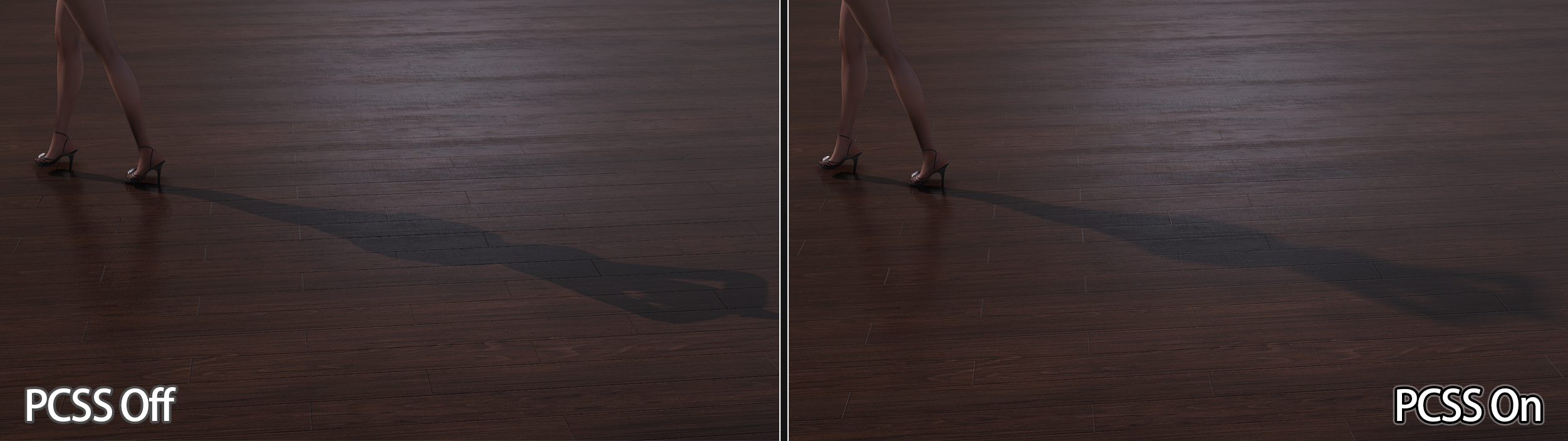

// Ref: ApplyShadowBias
// Should be used in fragment shader instead of vertex shader
float3 IllusionApplyShadowBias(float3 positionWS, float3 normalWS, float3 lightDirection)
{
#ifdef _MAIN_LIGHT_SHADOWS_CASCADE
    half cascadeIndex = ComputeCascadeIndex(positionWS);
#else
    half cascadeIndex = half(0.0);
#endif

    float4 shadowBias = _MainLightShadowCascadeBiases[cascadeIndex];

    float invNdotL = 1.0 - saturate(dot(lightDirection, normalWS));
    float scale = -invNdotL * shadowBias.y;

    // In fragment shadow bias, bias direction is reversed
    positionWS = -lightDirection * shadowBias.xxx + positionWS;
    positionWS = normalWS * scale.xxx + positionWS;
    return positionWS;
}

float3 biasPositionWS = positionWS;
#if APPLY_SHADOW_BIAS_FRAGMENT
    // Recalculate shadowCoord when using shadow bias in fragment shader
    biasPositionWS = IllusionApplyShadowBias(positionWS, normalWS, lightDir);
    #if !(defined(_MAIN_LIGHT_SHADOWS_SCREEN) && (SURFACE_TYPE_RECEIVE_SCREEN_SPACE_SHADOWS))
        shadowCoord = TransformWorldToShadowCoord(biasPositionWS);
    #endif
#endif

half realtimeShadow = IllusionMainLightRealtimeShadow(shadowCoord);

var descriptor = renderingData.cameraData.cameraTargetDescriptor;
var viewportSize = new Vector2Int(descriptor.width, descriptor.height);
_historyRTSystem.SwapAndSetReferenceSize(descriptor.width, descriptor.height);

// Since we do not use RTHandleScale, ensure render texture size correct
if (_historyRTSystem.rtHandleProperties.currentRenderTargetSize.x > descriptor.width
    || _historyRTSystem.rtHandleProperties.currentRenderTargetSize.y > descriptor.height)
{
    _historyRTSystem.ResetReferenceSize(descriptor.width, descriptor.height);
}

// Re-order light shadow caster pass renderPassEvent better for async compute.
// Ref: https://developer.nvidia.com/blog/advanced-api-performance-async-compute-and-overlap/
bool enableAsyncCompute = _rendererData.PreferComputeShader
                            && IllusionRuntimeRenderingConfig.Get().EnableAsyncCompute;

// Shadow Caster has bug in URP14.0.12 when there is no main/additional light in scene which will clear pre-z.
// So skip re-order when shadow is not rendered.
bool reorderMainLightShadowPass = enableAsyncCompute && CanRenderMainLightShadow(renderingData);
var mainLightShadowCasterPass = UniversalRenderingUtility.GetMainLightShadowCasterPass(renderer);
if (mainLightShadowCasterPass != null)
{
    mainLightShadowCasterPass.renderPassEvent = reorderMainLightShadowPass ? IllusionRenderPassEvent.LightsShadowCasterPass : RenderPassEvent.BeforeRenderingShadows;
}
bool reorderAdditionalLightShadowPass = enableAsyncCompute && CanRenderAdditionalLightShadow(renderingData);
var additionalLightsShadowCasterPass = UniversalRenderingUtility.GetAdditionalLightsShadowCasterPass(renderer);
if (additionalLightsShadowCasterPass != null)
{
    additionalLightsShadowCasterPass.renderPassEvent = reorderAdditionalLightShadowPass ? IllusionRenderPassEvent.LightsShadowCasterPass : RenderPassEvent.BeforeRenderingShadows;
}

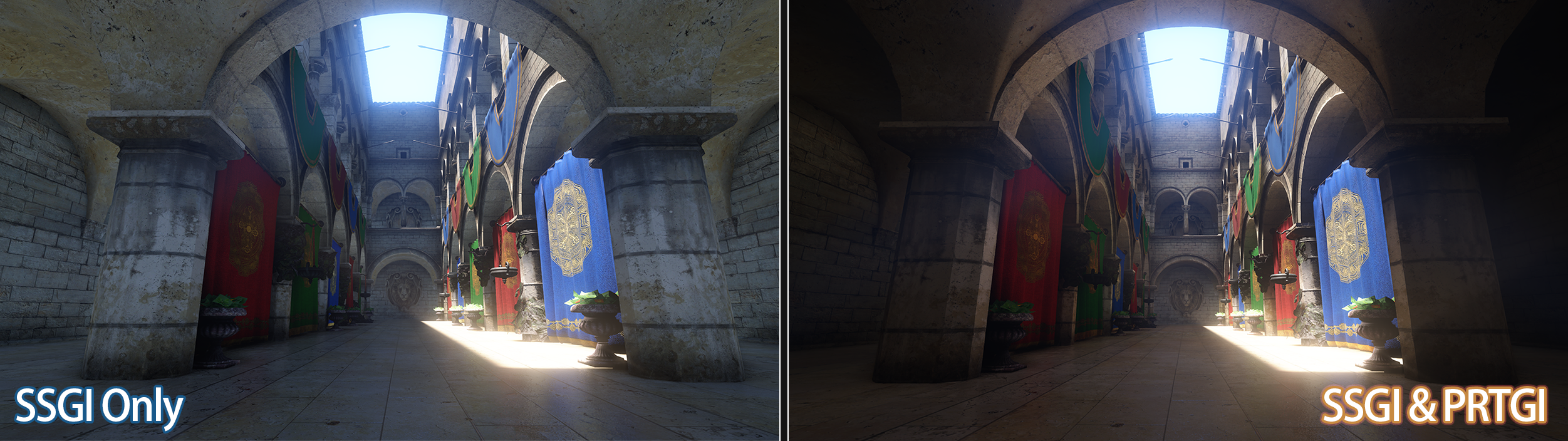

private void BindAmbientProbe(CommandBuffer cmd)
{
    SphericalHarmonicsL2 ambientProbe = RenderSettings.ambientProbe;
    _ambientProbeBuffer ??= new ComputeBuffer(7, 16);
    var array = new NativeArray<Vector4>(7, Allocator.Temp);
    array[0] = new Vector4(ambientProbe[0, 3], ambientProbe[0, 1], ambientProbe[0, 2], ambientProbe[0, 0] - ambientProbe[0, 6]);
    array[1] = new Vector4(ambientProbe[1, 3], ambientProbe[1, 1], ambientProbe[1, 2], ambientProbe[1, 0] - ambientProbe[1, 6]);
    array[2] = new Vector4(ambientProbe[2, 3], ambientProbe[2, 1], ambientProbe[2, 2], ambientProbe[2, 0] - ambientProbe[2, 6]);
    array[3] = new Vector4(ambientProbe[0, 4], ambientProbe[0, 5], ambientProbe[0, 6] * 3, ambientProbe[0, 7]);
    array[4] = new Vector4(ambientProbe[1, 4], ambientProbe[1, 5], ambientProbe[1, 6] * 3, ambientProbe[1, 7]);
    array[5] = new Vector4(ambientProbe[2, 4], ambientProbe[2, 5], ambientProbe[2, 6] * 3, ambientProbe[2, 7]);
    array[6] = new Vector4(ambientProbe[0, 8], ambientProbe[1, 8], ambientProbe[2, 8], 1);
    _ambientProbeBuffer.SetData(array);
    array.Dispose();
    cmd.SetGlobalBuffer(IllusionShaderProperties._AmbientProbeData, _ambientProbeBuffer);
}

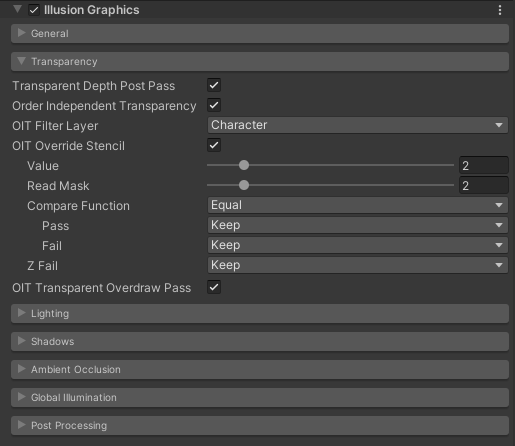

public partial class IllusionRendererFeature
  {
      // Notice that prefilter attribute only works for serialized fields and constants
      internal enum PrefilterMode
      {
          Remove,                     // Removes the keyword
          Select,                     // Keeps the keyword
          SelectOnly                  // Selects the keyword and removes others
      }

      // Override priority in UniversalRenderPipelinePrefitering
      // Prefer Depth Normal, see GroundTruthAmbientOcclusion.cs
      [SelectIf(true, overridePriority: true, keywordNames: ScreenSpaceAmbientOcclusion.k_SourceDepthNormalsKeyword)]
      private const bool RequiresScreenSpaceOcclusionDepthNormals = true;


      [RemoveIf(PrefilterMode.Remove,     keywordNames: IllusionShaderKeywords._SCREEN_SPACE_SSS)]
      [SelectIf(PrefilterMode.Select,     keywordNames: new [] {"", IllusionShaderKeywords._SCREEN_SPACE_SSS})]
      [SelectIf(PrefilterMode.SelectOnly, keywordNames: IllusionShaderKeywords._SCREEN_SPACE_SSS)]
      [SerializeField]
      internal PrefilterMode ScreenSpaceSubsurfaceScatteringPrefilterMode = PrefilterMode.Select;
  }

private bool StripUnusedFeatures_ScreenSpaceOcclusion(ref ShaderStrippingData strippingData, ref ShaderStripTool<ShaderFeatures> stripTool)
{
    if (strippingData.IsShaderFeatureEnabled(ShaderFeatures.ScreenSpaceOcclusion))
    {
        // Transparent strip ssao
        if (strippingData.IsKeywordEnabled(_surfaceTypeTransparent) && strippingData.IsKeywordEnabled(_screenSpaceOcclusion))
            return true;

        if (stripTool.StripMultiCompileKeepOffVariant(_screenSpaceOcclusion, ShaderFeatures.ScreenSpaceOcclusion))
            return true;
    }
    else
    {
        if (stripTool.StripMultiCompile(_screenSpaceOcclusion, ShaderFeatures.ScreenSpaceOcclusion))
            return true;
    }

    return false;
}
